●RF6,WH6,S6电气特性与产品尺寸
●S6 product characteristics and dimensions(25℃)
|
Model |
Ih | It | Vmax | Imax | Rmin | Rmax | Product Dimensions(mm)最大产品尺寸 | ||||||||
| A | A |
A |
S |
V | A | Ω | Ω |
W |

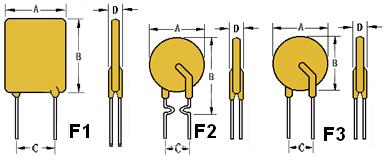

Syyle | A | B | C | D | Lead | |
| S6-075 | 0.75 | 1.30 |
0.8 |
0.4 |
6 | 40 | 0.110 | 0.175 |
0.3 |
F2 | 6.9 | 11.4 | 5.9 | 3.1 | 0.5 |
| S6-090 | 0.90 | 1.80 | 8.0 | 1.2 | 16 | 40 | 0.070 | 0.120 | 0.6 | F1 | 7.4 | 12.2 | 5.9 | 3.1 | 0.5 |
| S6-110 | 1.10 | 2.20 | 8.0 | 2.3 | 16 | 40 | 0.050 | 0.095 | 0.7 | F1 | 7.4 | 14.2 | 5.9 | 3.1 | 0.5 |
| S6-120 | 1.20 | 2.40 | 0.8 | 0.5 | 6 | 40 | 0.065 | 0.098 | 0.6 | F2 | 6.9 | 11.7 | 5.9 | 3.1 | 0.5 |
| S6-135 | 1.35 | 2.70 | 8.0 | 4.5 | 16 | 40 | 0.040 | 0.074 | 0.8 | F1 | 8.9 | 13.5 | 5.9 | 3.1 | 0.5 |
| S6-155 | 1.55 | 2.65 | 0.8 | 0.5 | 6 | 40 | 0.043 | 0.071 | 0.6 | F1 | 6.9 | 11.7 | 5.9 | 3.1 | 0.5 |
| S6-160 | 1.60 | 3.20 | 8.0 | 9.0 | 16 | 40 | 0.030 | 0.061 | 0.9 | F1 | 8.9 | 15.2 | 5.9 | 3.1 | 0.5 |
| S6-185 | 1.85 | 3.70 | 8.0 | 10.0 | 16 | 40 | 0.030 | 0.051 | 1.0 | F1 | 10.2 | 15.7 | 5.9 | 3.1 | 0.5 |
| S6-250 | 2.50 | 5.00 | 8.0 | 40 | 16 | 40 | 0.020 | 0.036 | 1.2 | F1 | 11.4 | 18.3 | 5.9 | 3.1 | 0.5 |
|
